Product description

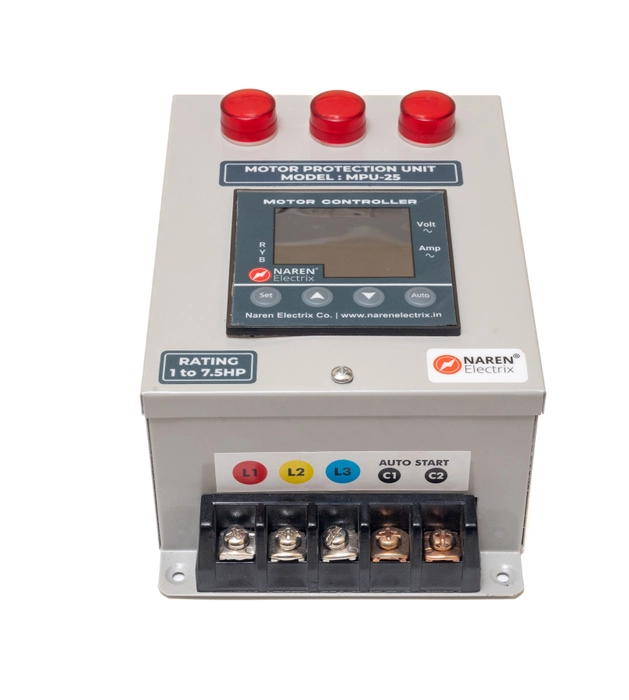

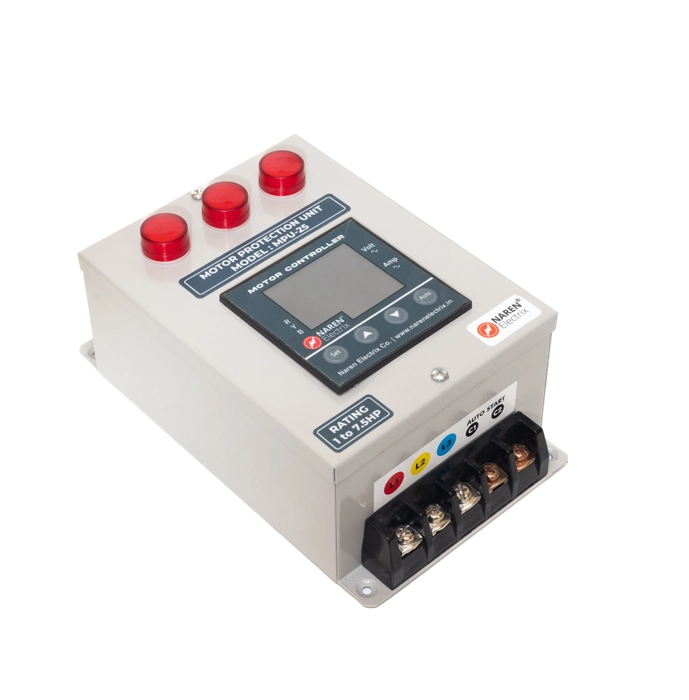

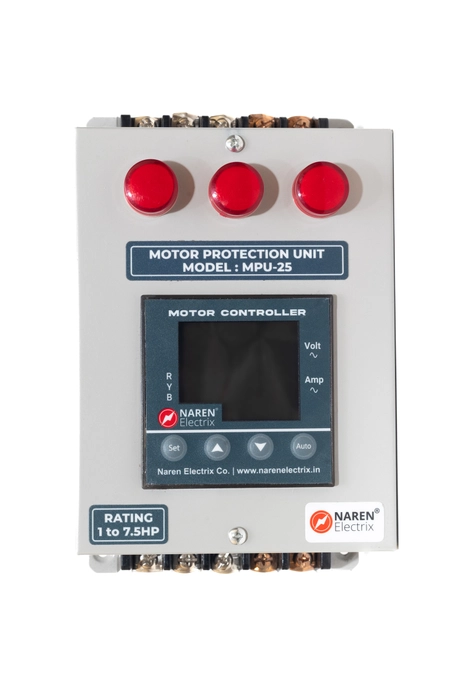

Introducing the Naren Motor Protection Unit – Model MPU-25 with DOL Starter** Looking for reliable protection for your 3-phase motor? Meet the MPU-25, an advanced electronic relay designed to enhance the safety and automation of any Direct-On-Line (DOL) starter ranging from 1HP to 7.5HP. Compatible with all DOL starters of your choice, the MPU-25 is built to safeguard and optimize your motor’s performance with a compact, intelligent design.

**Key Features:** - Digital Overload Protection - Digital Dry Run Relay - Single Phase Protection - Auto Start Unit with Adjustable On Delay - Phase Sequence Monitoring - Ampere Auto Adjustment - 3-Phase Supply Indicators

Maximum Current Range: 50A

Connections:

Naren MPU25 can be connected in 2 configurations


1) Connecting MPR at the load end

Connect the output of the Starter to L1, L2 and L3 respectively (all 3 load wires)

Connect the motor cables to M1, M2 and M3

Connect C1 and C2 across start push button

Connect C3 and C4 in series with the No- Volt coil of the Contactor

2) Connecting MPR at the Supply end

Connect the incoming supply lines (load wires) to L1, L2 and L3 respectively

Connect M1, M2 and M3 (same load wire sizes) to the incoming of your motor starter

Connect C1 and C2 across start push button

Connect C3 and C4 in series with the No- Volt coil of the Contactor



Operation:

The LCD powers up automatically when the Supply is detected in all the 3 lines. On sensing the current in all the 3 Phases, C3 and C4(Normally open contact) close. C3 and C4 will remain closed till current in all the 3 lines is within the set limit. C3 and C4 open only during the faulty conditions or when the motor is switched off manually. The reason for the trip along with the trip current is displayed on the LCD.

Technical Specifications:

Normally open Dry Relay Contacts
Wire Size to be used for L1, L2 and C1, C2 is a minimum of 0.5 sq. mm
Relay Closing time when currents are detected - 1 second

Tripping time:

Overload - 12 seconds
Dry Run (Underload) - 8 seconds
Single Phasing - 2 Seconds

Dry Run (Underload) - 8 seconfds
C1 and C2 closing time once the current is detected: About 2 Seconds

Application:

Naren Motor Protection Unit is used in all 3 Phase Submersible Starters as a protection mechanism to protect the motor against current and voltage irregularities. This device effectively switches OFF the motor in any irregularity and hence prevents burning of the motor windings. The reason for turning OFF is displayed on the LCD which makes the diagnosis easy. This device is rugged and is specifically designed for agricultural operations. The motor safeguarding devices like these are very critical which will save the users from the costs incurred due to motor failures.



WARRANTY:

This product carries a warranty of 6 months from the date of purchase. Any issues within the warranty period will be attended to free of cost at our works in Bangalore. Post the warranty period, the product will be eligible for the paid service at our works. The invoice copy acts as a warranty card. The shipping of the product for repair will have to be done by the consumer.
